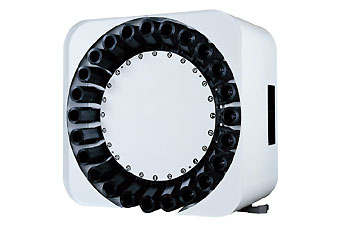

Turntable Style Tool Magazine - 30#, 40#, 50#

產品敘述:
It uses the break motor cam drive, Mechanism is simple, product is mature and reliable. Turntable Style Tool Magazine
產品特性
  • Tool holder is made from industrial plastic. It is strong and is suitable for temperature between -20C~120C. It is also light weight, Deterioration and corrosion resistant. 0% holder wear under normal usage condition.
  • The tool holder rail uses a patent design that has low noise and low vibration during tool tray rotation.
  • Tool reverse mechanism uses a curve cam design that ensures smooth tool reverse movement and prevents tool holder drooping during pressure drop.
  • Tool magazine mechanism is stiff. It can withstand high speed tool changes and heavy tools.
  • Tool tray movement utilizes barrel cam design, Movement is smooth, quiet, and precise.

    • 產品規格

    30#

    Tool Capacity 16T~30T(20T)
    Tool Models BT/CAT/ISO/HSK/SK Series
    Tool Change Time 0.8sec
    Maximum Tool Weight 5kg
    Maximum Tool Length 300mm
    20T as Example
    Tool Holder Distance To Center 410mm
    Maximum Tool Diameter Max Full Load Dia.：φ60mm
    Max Partial Load Dia.：φ100mm
    Maximum Unbalance Load 40kg
    Tool Magazine Drive Source Input Voltage：AC220V 3φ 60HZ/380V 3φ50HZ
    Pneumatic Pressure 5~6kg/c㎡

    40#

    Tool Capacity 16T~40T(24T)
    Tool Models BT/CAT/ISO/HSK/SK Series
    Tool Change Time 1.0~1.8sec
    Maximum Tool Weight 8kg
    Maximum Tool Length 350mm
    24T as Example
    Tool Holder Distance To Center 80mm
    Maximum Tool Diameter Max Full Load Dia.：φ80mm
    Max Partial Load Dia：φ160mm（Semi-Cover/Full Cover）
    Maximum Unbalance Load 90kg
    Tool Magazine Drive Source Input Voltage：AC220V 3φ 60HZ/380V 3φ50HZ
    Pneumatic Pressure 5~6kg/c㎡

    50#

    Tool Capacity 20T~30T(24T)
    Tool Models BT/CAT/ISO/HSK/SK Series
    Tool Change Time 2.5~3.2sec
    Maximum Tool Weight 16kg
    Maximum Tool Length 400mm
    24/30T as Example
    Tool Holder Distance To Center 975mm
    Maximum Tool Diameter Max Full Load Dia.：φ133mm 24T
    Max Full Load Dia.：φ127mm 30T
    Max Full Load Dia.：φ124mm
    Maximum Diameter Of Neighboring Tool φ200mm（Semi-Cover） φ150mm（Full Cover）
    Maximum Unbalance load 180 kg
    Tool Magazine Drive Source Input Voltage：AC220V(380V)3φ 60HZ(50HZ)
    Pneumatic Pressure 5-6 kg/c㎡

    Fitting

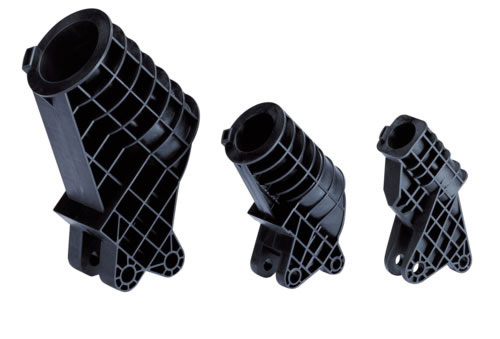

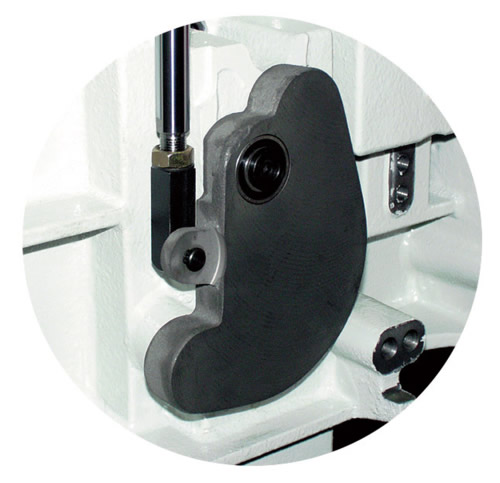

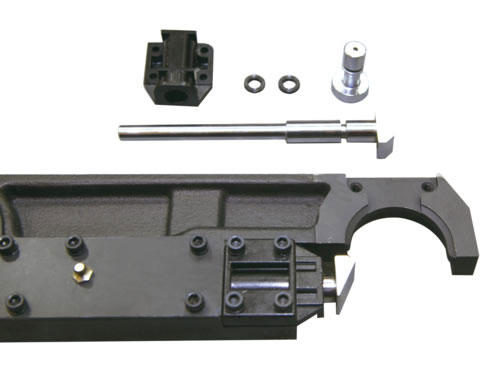

    Ftting - Pot Up Down Cam Fitting - Pot Fitting - High Grade Arm
    Pot Up Down Cam Pot High Grade Arm
